Vegetable and Fruit Washing & Drying & Grading Line

The commercial fruit and vegetable washing drying grading line is mainly used to automate the processing of large quantities of fruits and vegetables. After a complete processing process in less than 10 minutes, the fruits and vegetables can be sold directly from the farm to the supermarket. The fruit and vegetable washing and grading line can handle all kinds of fruits and vegetables, effectively deal with impurities, sort out bad fruits, and automatically grade and package them for processing. The processing capacity of automatic fruit and vegetable washing and drying and grading line is generally between 500kg/h and 5000kg/h. Our factory can customize cost-effective processing plants according to the specific needs and raw materials of our customers.

Why choose vegetable washing drying grading lines?

Large market demand for clean vegetables

Today, fruit and vegetable supermarkets, large canteens, and food processing plants have a very high demand for clean vegetables. As a result, many fruit and vegetable farms no longer sell their freshly harvested fruit and vegetable products directly to the market but choose to use fruit and vegetable processing equipment to process the fruits and vegetables into clean, well-packaged vegetables. This processing method of cocoa greatly increases the added value of fruit and vegetable products and is more popular in the market.

High processing efficiency and lower cost

Compared to hiring many manual workers to process fruit and vegetable products, purchasing a full set of fruit and vegetable washing drying grading packaging lines can greatly improve processing efficiency and reduce the cost of many workers.

Fruit & vegetable washing drying grading line details

The design of the fruit and vegetable processing line can be generally applied to all kinds of food processing plants, fruit and vegetable supermarkets, restaurants, etc. for the processing of all kinds of fruits and vegetables. The main equipment included in this production line is an automatic lifting machine, bubble washing machine, impurity removal machine, air dryer, picking table, automatic fruit, and vegetable grading machine, clean vegetable packing machine, etc.

Lifting the raw materials

First of all, we need to add the vegetables or fruits that need to be washed to the automatic elevator one after another. The elevator will transport them to the bubble washer for cleaning at a uniform speed. The conveying speed of the elevator can be adjusted according to the processing needs.

Vegetable & fruit washing

The vortex generator below the cleaning tank of the**air bubble washer** generates a large number of bubbles in the water for fast cleaning of fruits and vegetables. There is also a surfing device at the end of the bubble washer, which can continuously make the material tumble forward. The cleaning process does not cause any damage to the raw material.

Impurities removing

After cleaning by the bubble washing machine, an impurity removal machine can be used for further cleaning of fruits and vegetables, etc. This impurity removal machine has multiple hair rollers, which can clean off the surface of fruits and vegetables that are difficult to clean off the hair or sand and stones.

Air drying

The air dryer has multiple sets of powerful fans to quickly dry the water droplets on the surface of fruits and vegetables. After air drying, the fruits and vegetables can be further packaged or graded.

Clean fruits & vegetable grading

The automatic grader can grade clean fruits and vegetables according to different grading dimensions such as weight, diameter, and size. After grading, customers can then sort and mark different sizes of fruits and vegetables for sale. The grading level of the grading machine can be customized according to the customer’s needs.

Fast packaging

Customers can also choose our fruit and vegetable packing machine to pack the graded fruits and vegetables according to their needs. Fruits and vegetables can be packed in vacuum packaging, boxed and bagged packaging, heat shrinkable film packaging, etc.

Classification of fruit and vegetable grading machine

As a very competent manufacturer and supplier of food machinery, we can provide a wide range of fruit and vegetable grading equipment for our customers to choose from. There are two main types of fruit and vegetable grading machines sold by our factory: grading by diameter and grading by weight.

Vegetable & fruit grading by diameter

Type 1

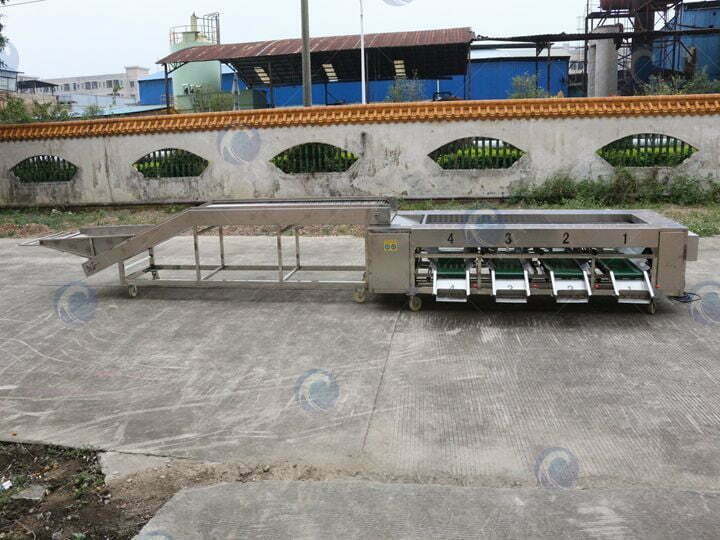

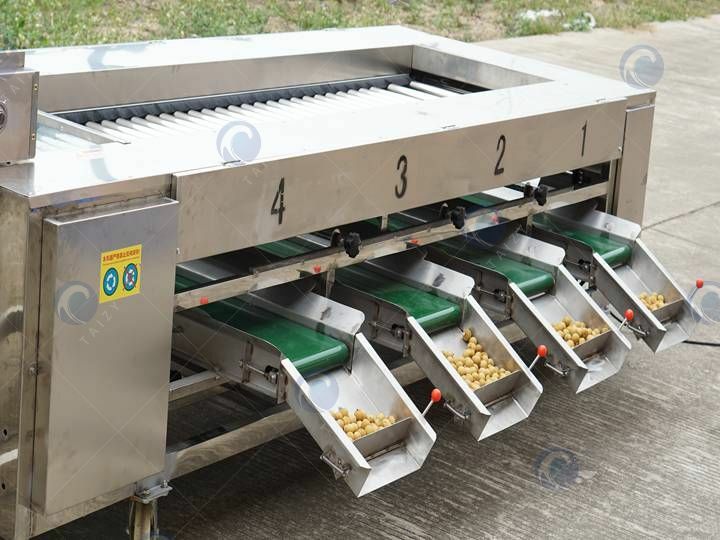

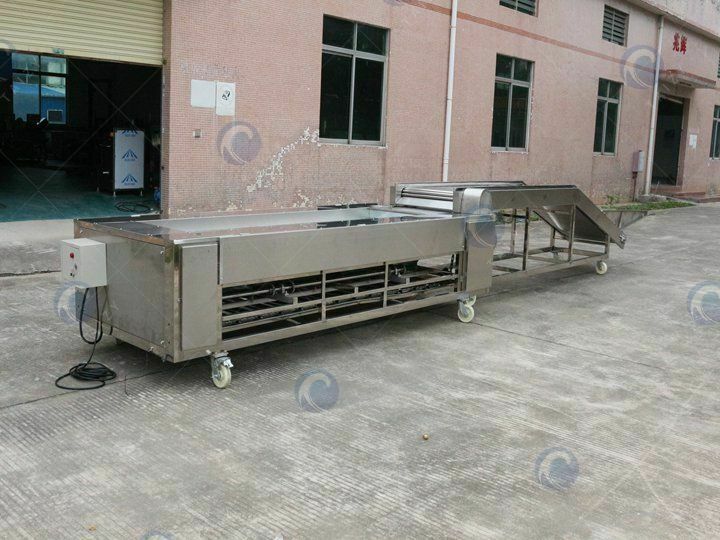

This roller bar type fruit and vegetable grading machine is commonly used for grading all kinds of bulbs, such as potatoes, taro, sweet potatoes, tomatoes, apples, onions, pomegranates, etc. The grading number of this grader can be customized according to customer requirements, generally 4-7 grades. When grading, the fruits and vegetables will automatically fall to the corresponding diameter grade of discharge when they reach the gap between the corresponding roll bars.

Potato grading machine video

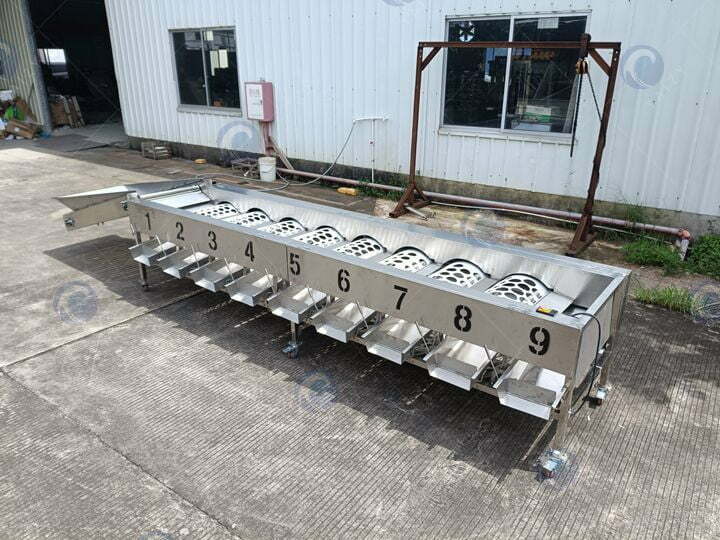

Type 2

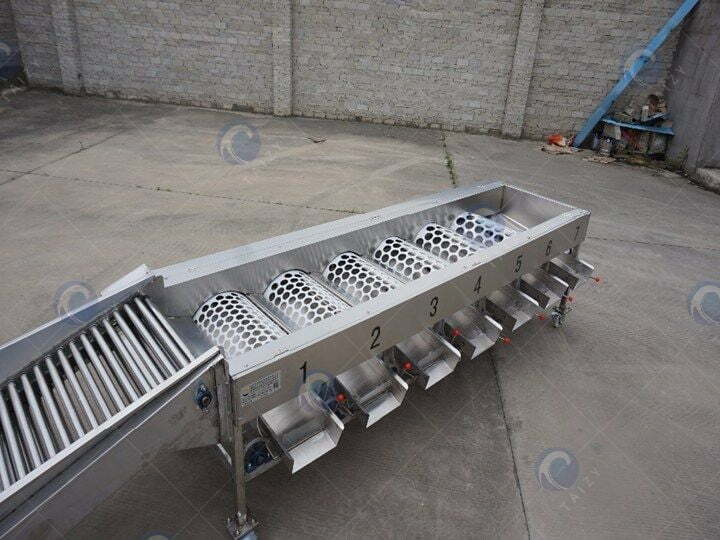

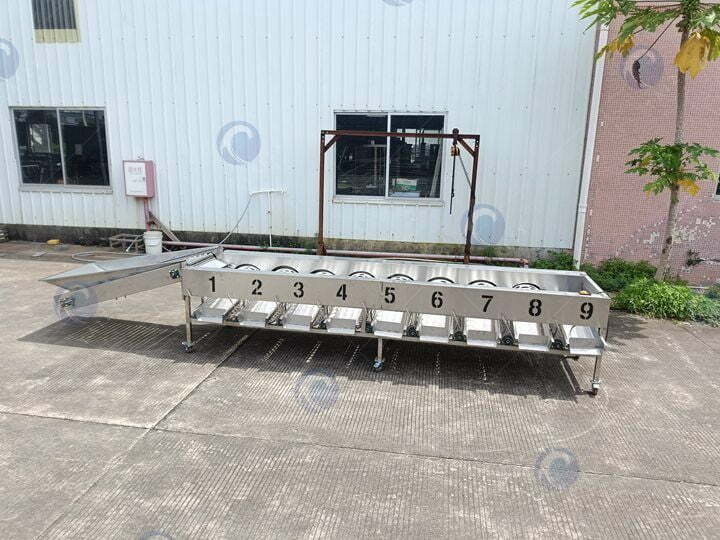

This new type of fruit and vegetable grader also grades fruits and vegetables according to their diameter. It is more commonly used for grading all kinds of fruits, such as oranges, blueberries, plums, saints fruits, kiwis, hawthorn, dates, etc. The grading cylinder of the grader is made of PE plastic and its aperture diameter can be customized. The grading grade of this automatic grader is usually 4-9 grades.

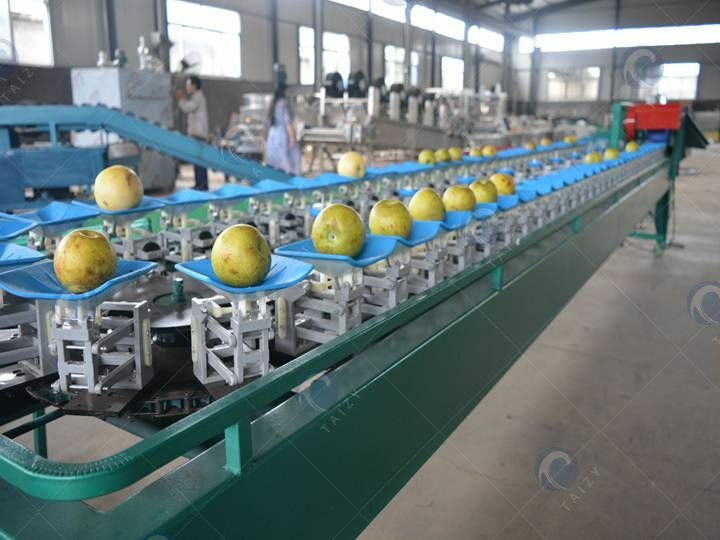

Vegetable & fruit grading by weight

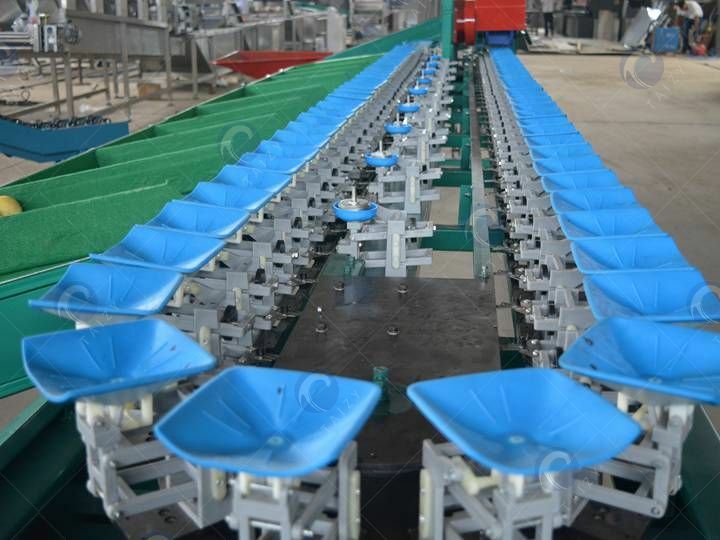

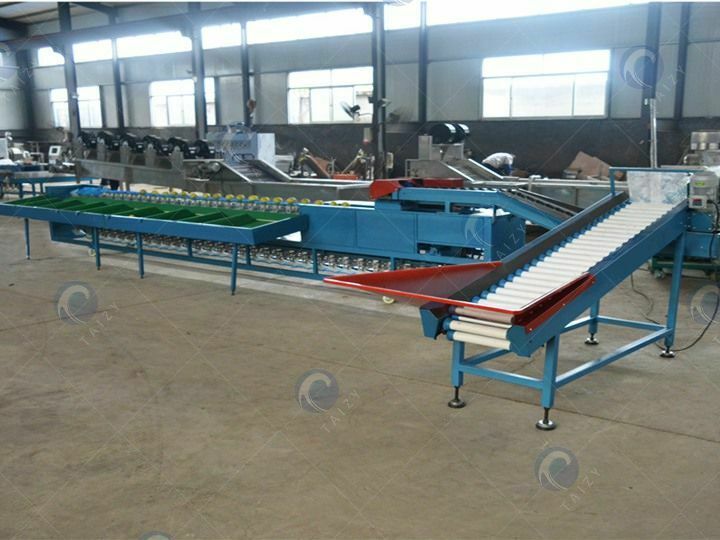

This continuous fruit and vegetable sorting machine is graded according to weight. This industrial grading machine can be used for grading all kinds of fruits and vegetables with great grading efficiency. The grading machine is usually used with an automatic fruit picker loader. The fruit sorting machine has an automatic weighing function, which allows the fruit and vegetables to be graded accurately by weight.

Common fruit and vegetable grading reference

Recommended machine for fruit and vegetable washing drying grading line

Clean vegetable packing machine

This continuous packaging machine can be used to package clean vegetables into bags or boxes. The size and weight of the fruit and vegetable package can be set according to the customer’s needs.

Plastic baskets cleaning machine

This industrial plastic basket washing machine can replace workers for all kinds of plastic baskets in fruit and vegetable processing plants for rapid cleaning and high-temperature sterilization.

Applications of vegetable processing plant

The complete set of fruit and vegetable processing plants is now widely used in many fields, such as frozen vegetable processors, chain supermarket suppliers, fruit and vegetable manor growers, etc. Nowadays, we have exported to many countries and regions We have exported our fruit and vegetable washing and grading lines to many countries and regions, such as Egypt, Canada, Turkey, United Kingdom, Italy, France, Canada, the USA, Qatar, France, Greece Indonesia, Saudi Arabia, Australia, etc.

3-5t/h Tomato and Zucchini washing drying grading line shipped to Turkey

The Taizy factory recently exported a complete fruit and vegetable processing line to Turkey with a capacity of 3-5 tons per hour. The customer has a large fruit and vegetable plantation and purchased the line mainly to process tomatoes, zucchini, potatoes, onions, eggplants, cucumbers, and bell peppers. The processing stages of the line include washing, drying, grading, and packaging.

Parameters of vegetable processing plant for Turkey
